The RAYDIME METER is an OCT-based distance measurement sensor that enables precise metrology of workpieces. Unlike existing OCT-sensors, the RAYDIME METER is designed for use with pre-focusing beam deflection units. This capability enables the RAYDIME METER to operate on large working fields of up to 500 x 500 mm² while achieving an excellent measurement accuracy of +/- 10 micrometers. The RAYDIME METER is particularly useful in scenarios where work has to be carried out within a small process window. Furthermore, it helps where precise z-distance measurement is required before laser processing, such as when welding thin sheets, welding bipolar plates or welding busbars in battery production.
In combination with a beam deflection unit, the RAYDIME METER can also measure the topography before and after laser processing. This enables precise quality control, which is required in many modern manufacturing processes. It not only improves the efficiency and results of these processes, but also reduces the risk of errors and represents a significant advance in precision manufacturing and quality control.
Automated distance measurement
Large measurement area
Easy system integration
WHAT IS SPECIAL ABOUT THE RAYDIME METER?
COAXIAL OCT FOR PREFOCUSING DEFLECTION UNITS
The RAYDIME METER is a high-precision distance measurement sensor designed specifi cally for use with pre-focusing beam defl ection units. This allows the advantages of such beam defl ection systems, such as high laser power and large working fi elds, to be utilized, even in demanding processes with small process windows.
The RAYDIME METER is designed for seamless integration with our beam defl ection units of the AXIALSCAN series or the AM-MODULE. By linking the devices via the SP-ICE-3 control card, the system off ers a high level of interoperability and enables, for example, fast autofocusing of the scan system in less than 50 ms. This is particularly important for laser processes that require precise control of the focal plane in the z-direction or a narrow process window.
Consequently, the RAYDIME METER is the ideal tool for automating complex and demanding laser welding or laser processing. See for yourself:
WORKING PRINCIPLE OF RAYDIME SENSORS
WORKING PRINCIPLE OF RAYDIME SENSORS
The RAYDIME sensor platform is based on optical coherence tomography (OCT), a nondestructive imaging technique that uses interferometry of coherent light to capture topographies with micrometer resolution.
RAYDIME sensors use a spectral domain OCT (SD-OCT), in which the interference of light of diff erent wavelengths is analyzed to obtain distance information. To do this, a light source with a high spectral bandwidth is split into two paths: a reference arm and a measurement arm. The light refl ected from the sample and the reference mirror is combined, resulting in interference patterns known as interferograms. A diff raction grating is used to break down the combined light into its spectral components. This makes it possible to analyze the interference in a wavelength-dependent manner and to precisely determine the distance to the sample.

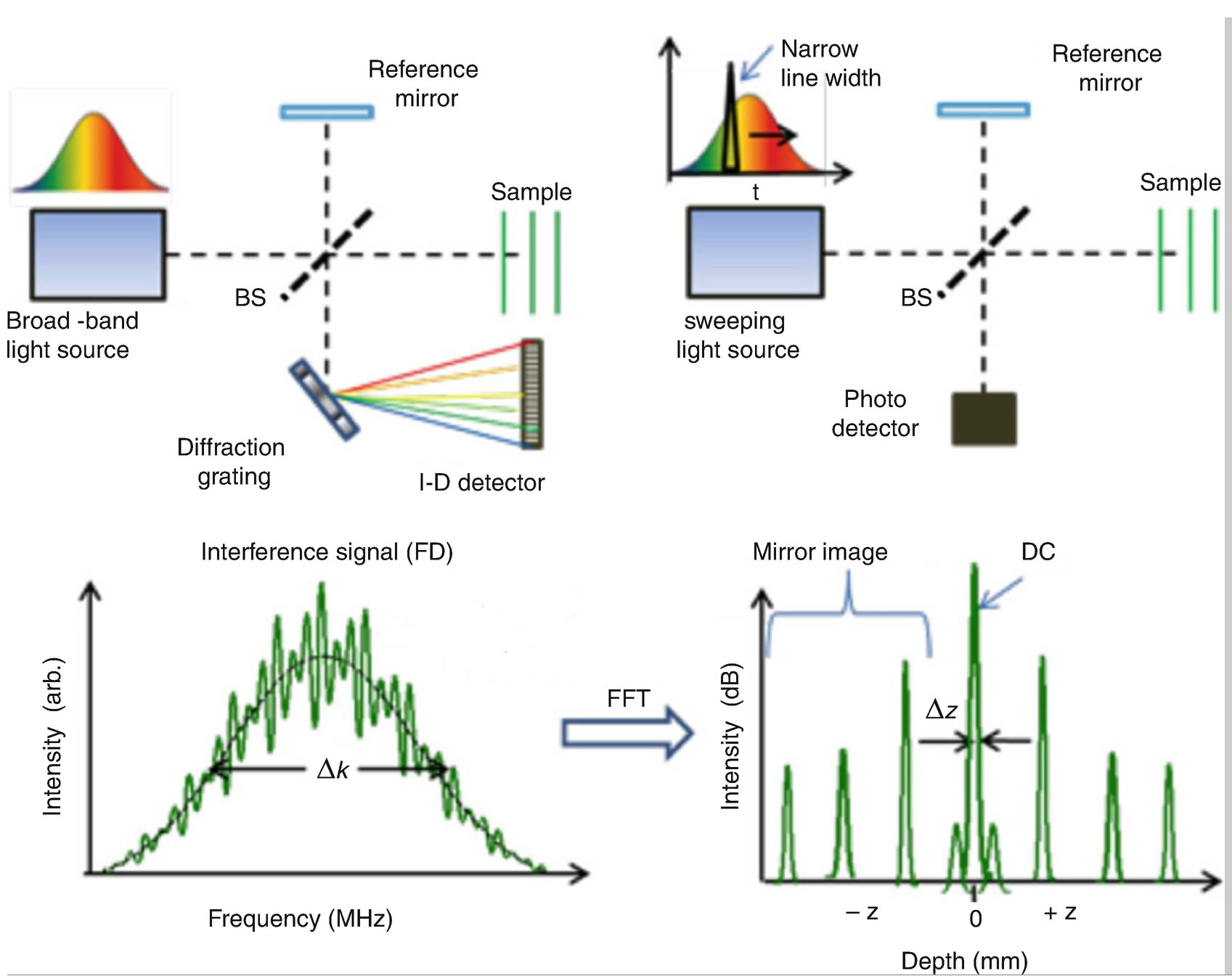

Principle of operation of a spectral domain OCT. This technology is used as the basis for the RAYDIME process sensors. (Source: High Resolution Imaging in Microscopy and Ophthalmology: New Frontiers in Biomedical Optics, 2019)
If the measuring point of the probe arm is moved over a workpiece with an additional scanner, topographical features such as distances and material thicknesses can be determined. Furthermore, process parameters, such as the keyhole depth during the welding, can be precisely measured with an OCT.
THE RAYDIME OPERATING PRINCIPLE
RAYDIME process sensors combine an OCT sensor (OCT base unit) with an OCT optical unit to correct deviations when using pre-focusing defl ection units. The OCT optical unit is connected to the process light output of the beam defl ection unit and the OCT base unit via fi ber and interlock.
The SP-ICE-3 control card ensures synchronous control of the defl ection unit and optical unit, while at the same time enabling precise assignment of OCT measurement data to positions in the processing fi eld. This makes the RAYDIME series a highly effi cient tool for detailed inspections and quality control in research and production.
Schematic structure of a RAYDIME sensor with an AXIALSCAN FIBER RD
WHAT DOES A RAYDIME SENSOR COMPRISE?
THE RAYDIME KEY COMPONENTS
The RAYDIME process sensors consist of three main components. These allow for precise distance measurement using an SD-OCT while benefi ting from the advantages of pre-focusing beam defl ection units.

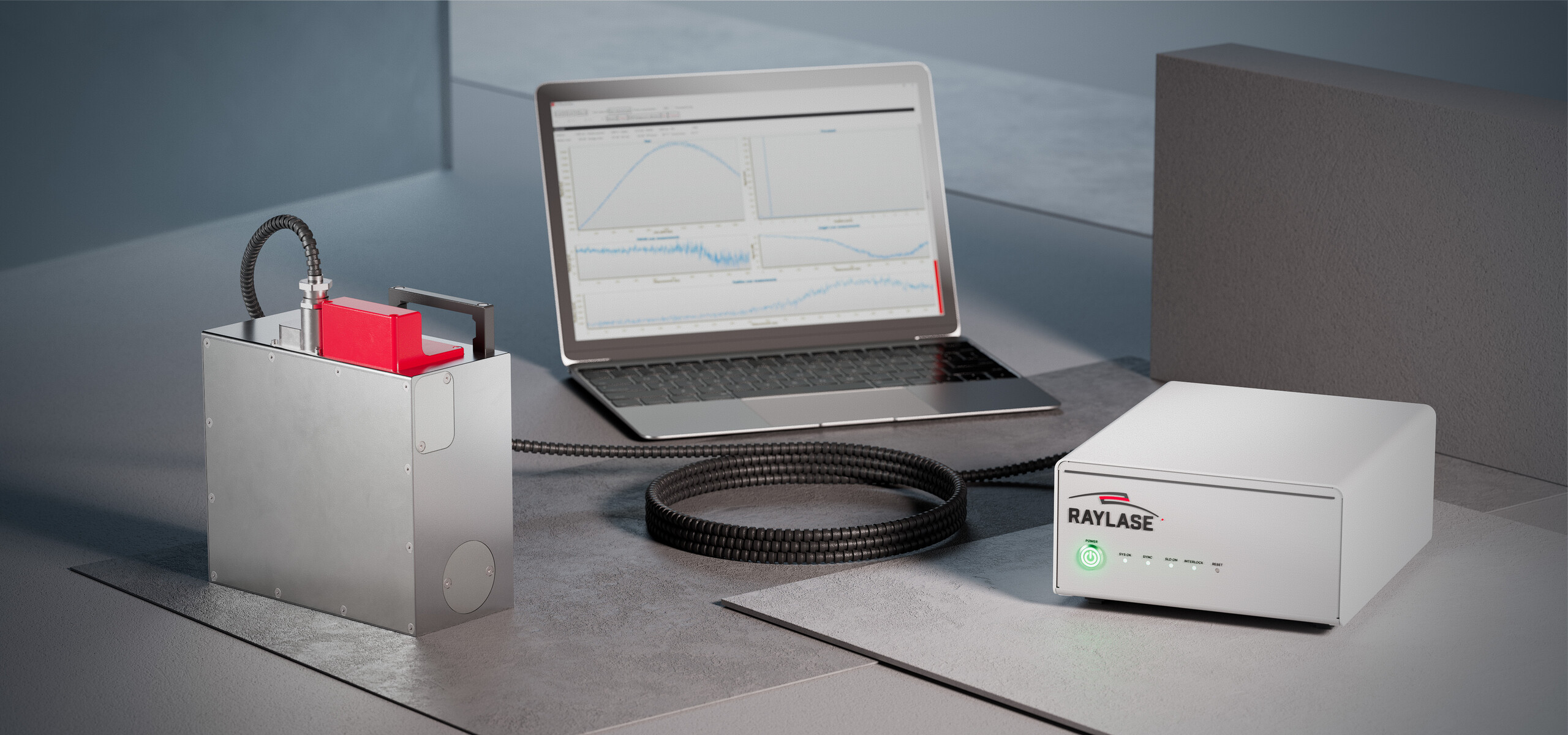

RAYLASE OCT-Base-Unit
The base unit of the RAYDIME products contains the OCT‘s basic components:
- Superluminescent diode for coherent illumination
- High-resolution light spectrometer with high-sensitivity CMOS camera for recording interferograms
- MiniPC for autonomous and real-time operation of the distance sensor
For distance measurement applications, the base unit is optimized for high z-resolution and high imaging depth. For keyhole measurements, the OCT base unit is designed for a high sampling rate due to the dynamics of the welding process.
RAYLASE OCT-Optical-Unit
The optical unit extends the base unit and enables the use of RAYDIME products together with pre-focusing scan systems. Since the focal length of a pre-focusing system changes depending on the defl ection angle, the RAYLASE OCT optical unit compensates this path length diff erence synchronously with the scanning movement.
| RAYLASE SP-ICE-3 control card with RAYDIME software plug-in The RAYLASE SP-ICE-3 is used to control RAYDIME sensor. It enables the optical and base units to be controlled and read out synchronously with the mirror position of the scanning system. In addition, corresponding plug-ins are available for the RAYLASE RAYGUIDE laser processing software. This also allows the RAYDIME METER to be conveniently combined with diff erent tools, such as RAYGUIDE MATCH for automatic position and distance detection in our BUSBAR WELDING MODULE. |
FACTS & USE CASEs
BUSBARS WELDING IN BATTERY PRODUCTION

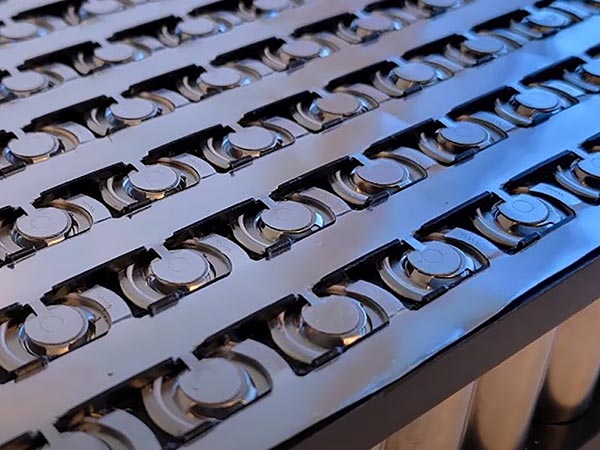

The welding of busbars plays a crucial role in battery production, as the quality of the weld has a direct influence on the battery‘s efficiency, performance, and safety. High-quality welds ensure low resistance and thus enable effective energy distribution. Low-quality welds lead to increased resistance, energy losses, overheating, or even battery failure.
THE CHALLENGES OF BUSBAR WELDING

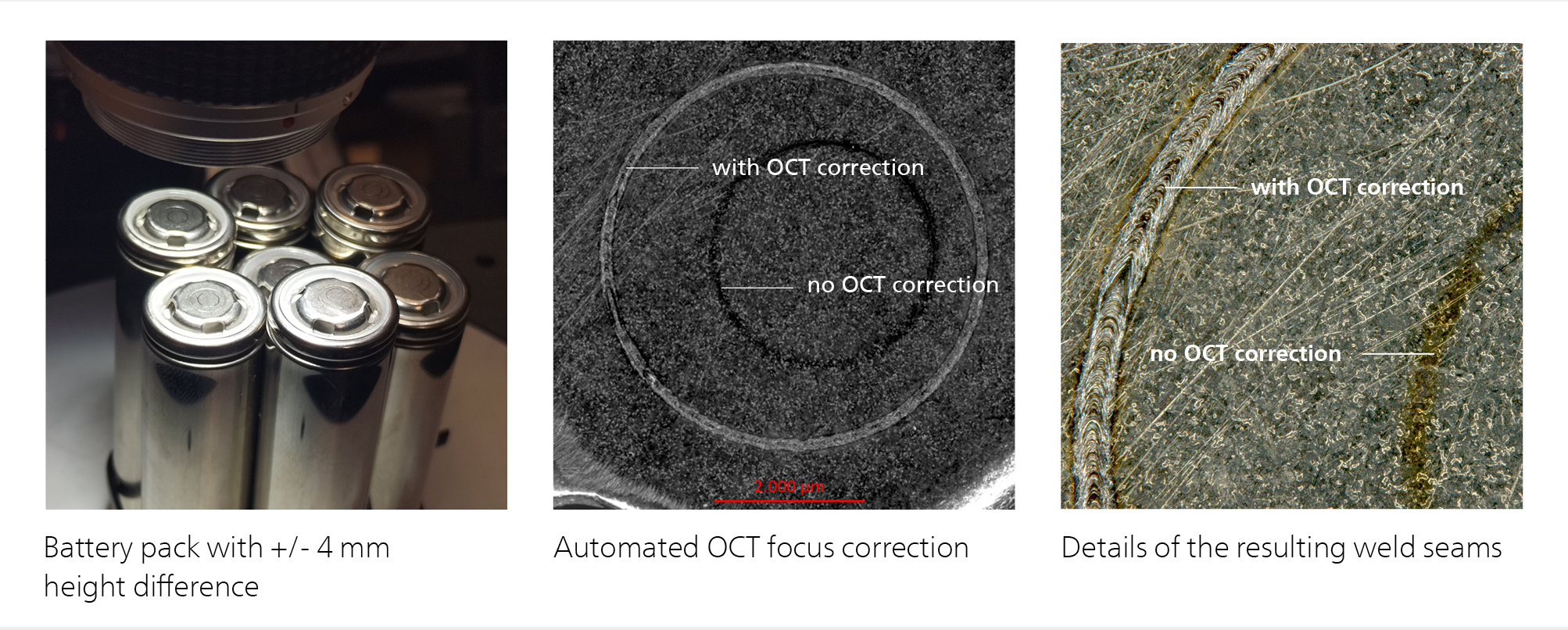

A particular challenge in battery production is the welding of busbars. Battery cells can have height differences of up to one millimeter, and the housing of the battery packs also often leads to mechanical tolerances. In addition, further positioning inaccuracies arise from the feeding of the components. Due to the low thickness of the battery housing, the welding must take place in a very narrow process window. This requires precise control of the welding process and is a challenging task for the system integrator.
BUSBAR WELDING MODULE OFFERS APPLICATION-SPECIFIC INTEGRATED SOLUTION
In order to develop an efficient and automated solution for this complex welding application, it is necessary to combine various components into a tailored overall solution.
Therefore, the AXIALSCAN FIBER RD-30 was combined with the RAYSPECTOR, the RAYDIME METER and the RAYGUIDE MATCH software to form the BUSBAR WELDING MODULE. It enables the processing of entire battery packs on a large processing area of up to 500 x 500 mm² without the need to move the battery or the laser system. This significantly reduces system complexity. The RAYDIME METER can detect height differences between the battery cells quickly and accurately, and the highly dynamic RAYVOLUTION DRIVE z-axis can compensate for them. This ensures that the focal plane remains within the process window even at high scanning speeds. In addition, the position-tracking camera port in combination with the RAYGUIDE MATCH position recognition system enables precise monitoring and automation of the welding process.
Due to RAYDIME METER; the height of the individual battery cells can be measured exactly and the z-position of the laser processing can be adjusted automatically.
MEASURING THE PART CONTOUR AS A QUALITY CONTROL
In critical industries such as aerospace and automotive, the quality of welds is of paramount importance. However, standard quality control technologies are often inadequate. Visual inspections can miss defects that are below the surface. Other nondestructive testing methods such as ultrasound are typically time-consuming and often require production to be interrupted for evaluation.
IN-LINE TOPOGRAPHY MEASUREMENT FOR QUALITY CONTROL

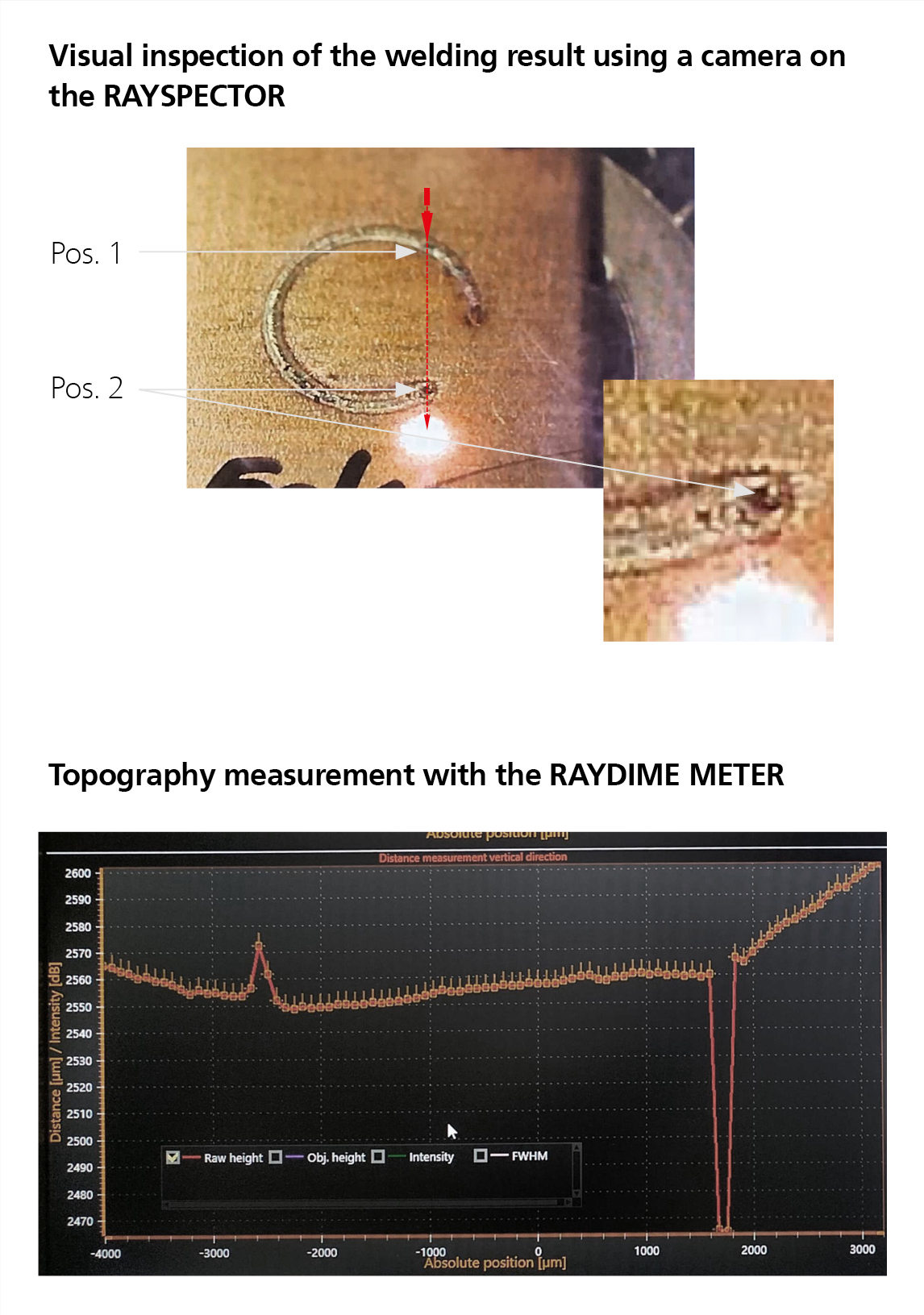

The RAYDIME METER revolutionizes this process step by simplifying the quality control process in several ways. First, it eliminates the need for additional post-weld quality control tools by providing a comprehensive view of weld quality immediately after the welding process. This not only saves time, but also significantly reduces the costs associated with using multiple inspection methods. Secondly, the immediate availability of detailed quality data in the event of defects enables direct reworking of the parts. These immediate corrective measures minimize production delays, increase overall efficiency and ensure that the end product meets the industry‘s strict quality standards.
OPTIMIZED LASER PRODUCTION WITH RAYDIME METER
The ability of the RAYDIME METER to integrate seamlessly into existing production lines not only overcomes the limitations of standard technologies, but also offers a cost-effective solution for ensuring the highest quality of welds. Particularly in sectors where welding defects can have significant safety or financial implications, the RAYDIME METER is an invaluable tool in modern manufacturing and quality control processes.
3d field calibration during the production process
Precision in laser processing is important in many industries. That is why most laser machines are calibrated when they are put into operation to ensure the accuracy required for production. However, this calibration only corrects initial tolerances. Due to aging and other long-term effects, the machine properties change and regular inspections and recalibrations are required to maintain precision.
For this purpose, highly accurate calibration solutions such as the RAYLASE SCAN-FIELDCALIBRATOR are available. However, even though these methods calibrate the system very reliably, they are usually only carried out during production breaks due to the time involved. In addition, they cannot compensate for short-term drifts or inaccuracies that are due to inaccurate alignment of the workpiece or manufacturing tolerances.
3D field calibration using the RAYDIME METER.

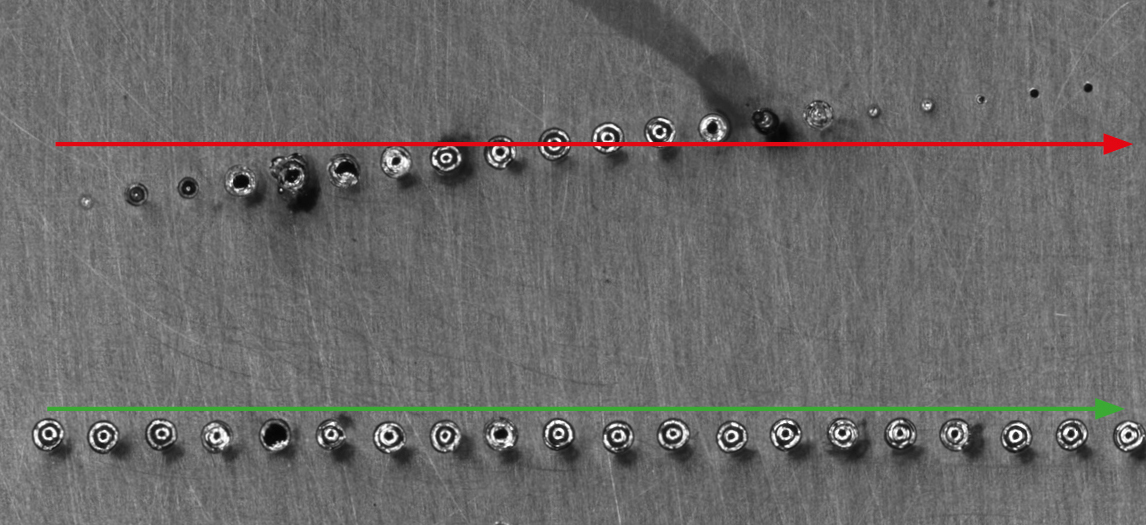

Top: Tilting the process field leads to distortions in the processing field and a defocusing of the laser focus. The tilt can be detected quickly and easily from the distance measurements with the RAYDIME METER, and an individually adapted calibration file can be created to ensure precise laser processing.
Bottom: The defocusing of the laser focus resulting from the tilting leads to incomplete welds (see red scan path). With an adapted correction file, the changing working distance is automatically compensated for by the z-axis of the scanning system, ensuring a uniform welding result (see green scan path).
Fast and individual field calibration with the RAYDIME METER
The RAYDIME METER is a precise distance sensor that offers an excellent option here: a series of measurements are taken in the processing field. Depending on the deflection angle, different distances result. The measured values are compared with the theoretical distances and a correction file is calculated. This allows to detect changes in working distances as well as tilting of the component.
Reliable series production through calibration before each processing step
Since a single distance measurement with the RAYDIME METER takes < 50 ms, the measurement of an 11x11-point calibration grid can be carried out in about 60 seconds. This can usually be easily included between two production batches and enables a regular check of a precise but more complex calibration using a laser-etched calibration plate. This allows to compensate for many short-term effects. Depending on the production cycle, each component can also be measured individually with a reduced number of calibration points and an individual calibration can be generated for each component. For optimal calibration results, the RAYDIME METER can also be combined with camera solutions such as RAYGUIDE MATCH, thus enabling even more complex manufacturing processes to be transferred to automated series production.
OPTIMAL ADD-ONs
AXIALSCAN FIBER RD-30: INTEGRATED SCAN SOLUTION FOR LARGE WORKING FIELDS
Thanks to its dust-proof housing, the AXIALSCAN FIBER RD is ideal for use in production environments

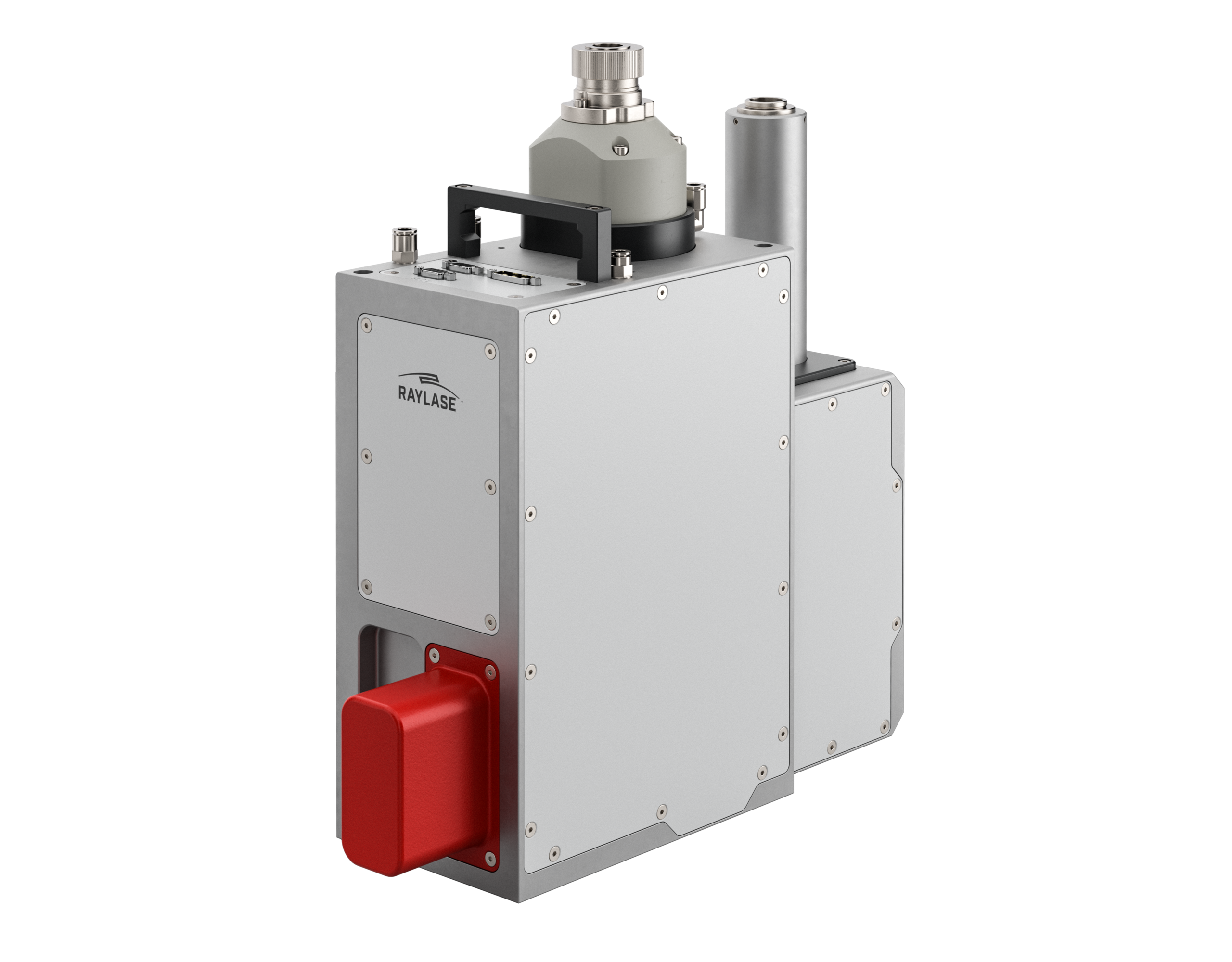

The AXIALSCAN FIBER RD-30 is a highly integrated, pre-focusing beam deflection unit that has been specially developed for industrial production. It is ideally suited for applications such as laser welding, cutting or cleaning. With its dust-proof housing and built-in collimation optics, the AXIALSCAN FIBER RD-30 is equipped for use with high laser powers of up to 6 kW and for special beam profiles such as ring modes or tophats. The RAYVOLUTION DRIVE technology, our highly dynamic optical z-axis, enables the AXIALSCAN FIBER RD-30 to utilize the full dynamics of its XY scanners without losing the focus plane. In addition, the large processing areas of up to 500 x 500 mm² allow large battery packs to be processed efficiently in a single pass without the need for complex movement of the workpiece or the beam deflection system.
RAYGUIDE CLICK & TEACH UND RAYGUIDE MATCH: CAMERA-BASED POSITION DETECTION FOR PROCESS AUTOMATION
n demanding manufacturing processes, precise alignment of the workpiece is a crucial aspect. While manual adjustment may be acceptable for prototypes, it is problematic even for the production of small series. RAYGUIDE CLICK&TEACH was developed to simplify this process preparation.
For this purpose, a camera on the AXIALSCAN FIBER RD-30 is used to create images of the processing area, which are then used as a background in the RAYGUIDE software. The RAYSPECTOR ensures a consistently sharp image of the image field thanks to its dynamic focus tracking. The RAYGUIDE CLICK&TEACH plug-in then allows the laser processing to be adapted to the actual positions and dimensions of the workpiece.
Automatic edge detection with RAYGUIDE MATCH for adjusting the position of the workpiece.
For the transition to series production, where manual steps would make the process uneconomical, RAYGUIDE MATCH is the ideal solution. This software plug-in expands the camera-based position detection to include automatic detection of features such as position marks or structures of the workpiece and automatically corrects the laser processing. This permits a higher tolerance in the feeding and alignment of the components, so that even precise laser processes can be carried out fully automatically and without manual intervention.
OTHER SUITABLE ACCESSORIES
INTUITIVE PROCESS SOFTWARE
Our software solution for a quick and easy programming of your scanning solution. User-friendly set-up and calibration of the deflection unit and effortless automation through the built-in API
CONTROL CARD WITH FEEDBACK FUNCTION
The control center for runtime-critical process steps. Allows synchronous control of deflection unit, laser and peripherals and a combined readback of scanner and of scanner and sensor signals.
