your benefits
RAYLASE sees itself as a full-range supplier, offering a complete portfolio – from deflection units to control electronics and the corresponding laser processing software. In developing our new RAYGUIDE software, we were able to leverage our many years of experience with our weldMARK laser processing software by incorporating fresh ideas from our user markets.
The software architecture is designed to respond quickly and flexibly to ever-changing and increasingly complex applications, while simultaneously guaranteeing a high degree of product stability. It goes without saying that the software is also subject to the latest quality assurance methods. While our RAYGUIDE software is still at the start of its life-cycle, it already offers a wide range of features and its functional scope will be enhanced on an ongoing basis to meet your and our requirements.
Let’s build the future together.
- An optically innovative user interface with user-defined configuration of the required panels
- Full integration of the RAYLASE SP-ICE-3 control card
- Equipped with functions to support all existing and new RAYLASE deflection units
- An agile architecture for responding quickly to new requirements
- Easy integration into automated production environments
interfaces
For customers that want to access RAYGUIDE functions from their own user interfaces, RAYLASE offers a software development kit (SDK). This is a program library that also incorporates all the application benefits of RAYGUIDE. The interface is programmed in the .NET environment.
TYPICAL APPLICATIONS
- Marking (bitmaps, text, codes, graphics)
- Welding
- Cutting
- Perforating
- Surface processing
- MOTF processing
- Preparation for stand-alone operation with the SP-ICE-3 control card
- ... and much more.

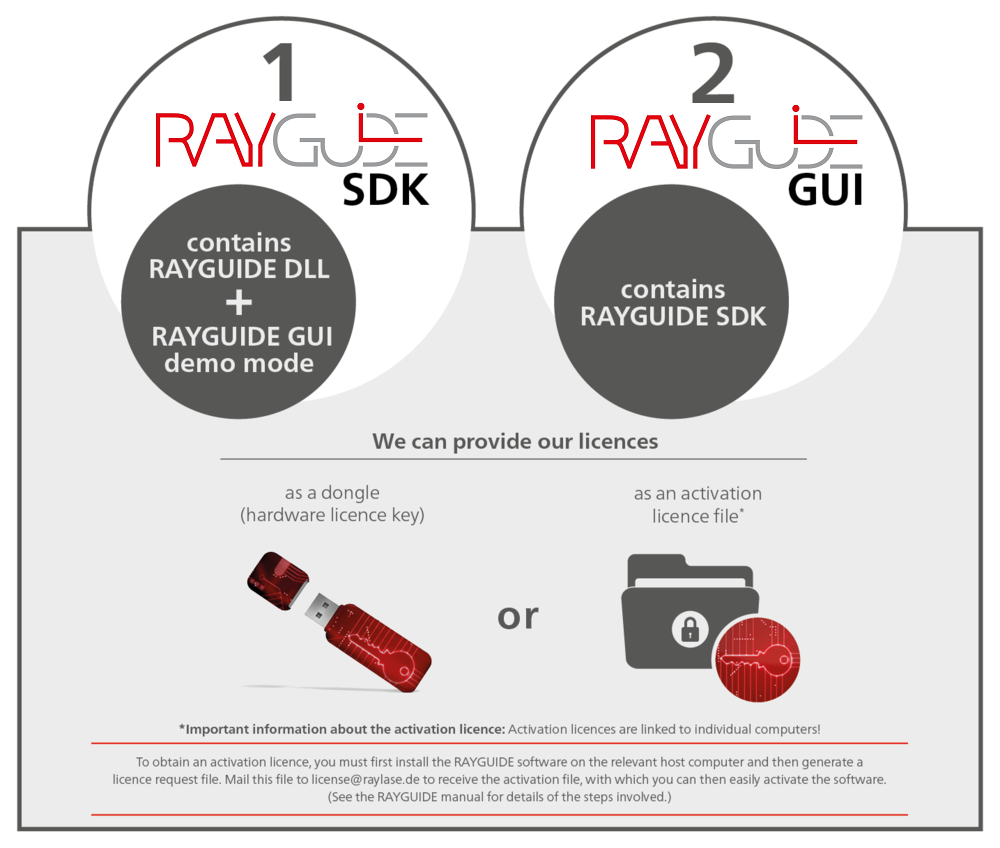

LIZENZEN
The following basic licences are currently available:
- RAYGUIDE SDK: This contains the RAYGUIDE DLL as a programmable interface, as well as the option to run the RAYGUIDE GUI in demo mode – for example, if you want to use the existing user interface to set up and calibrate the system directly.
- RAYGUIDE GUI: This licence is for customers that want to use the RAYGUIDE user interface. It also includes the programmable interface. We can provide our licences as a dongle (hardware licence key) or as an activation licence file*

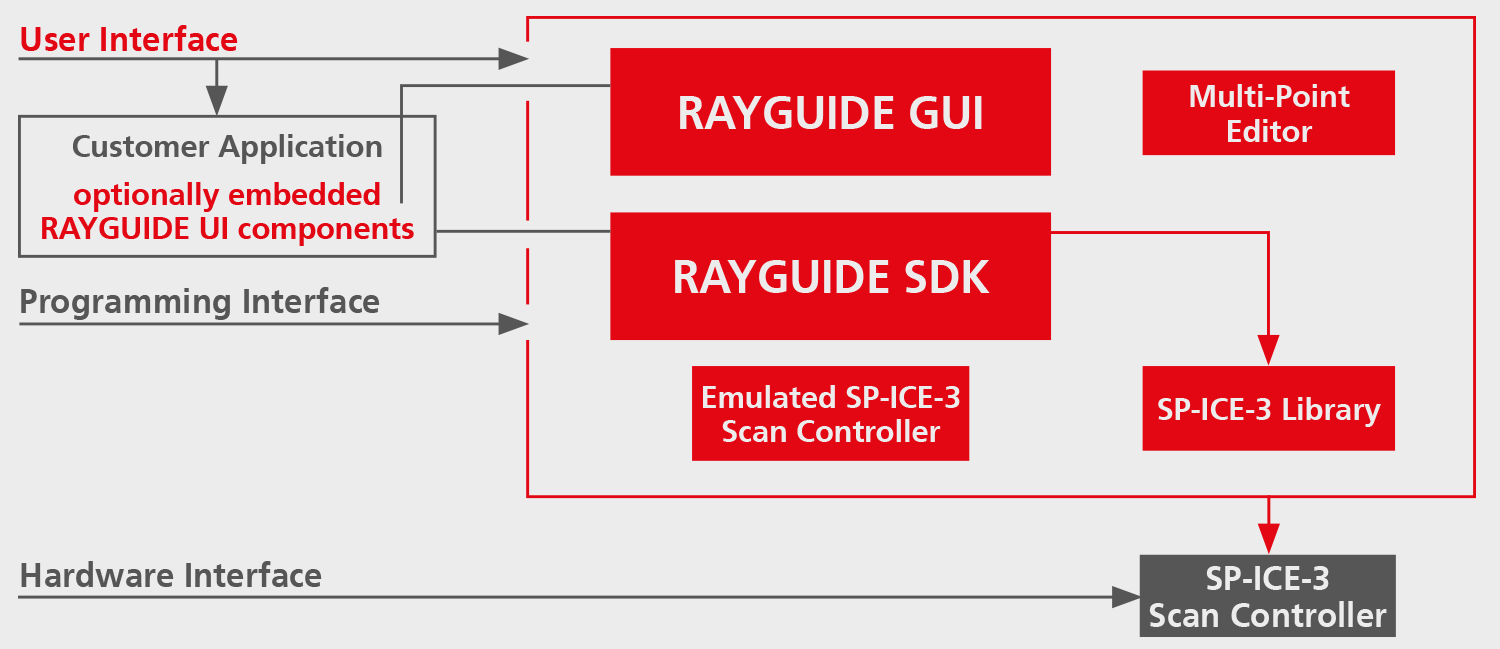

BASIC INTERFACE STRUCTURE
SYSTEM REQUIREMENTS
- Windows 10 (32/64 bit) / Windows 11 (64-Bit) operating system
- Microsoft .NET Framework Version 4.8 or higher
- 4 GB RAM memory and 200 MB of free memory on the hard disk
- Compatible control card: RAYLASE SP-ICE-3
BOOK A RAYGUIDE LIVE DEMo
If you want to see our RAYGUIDE software and its new feature MATCH in action, you can book a live demonstration with our Product Manager Robert Kachel at the exhibition LASER WORLD OF PHOTONICS 2023. With his extensive experience in laser processing and software development, he will be happy to show you how RAYGUIDE can boost your productivity of your application.
